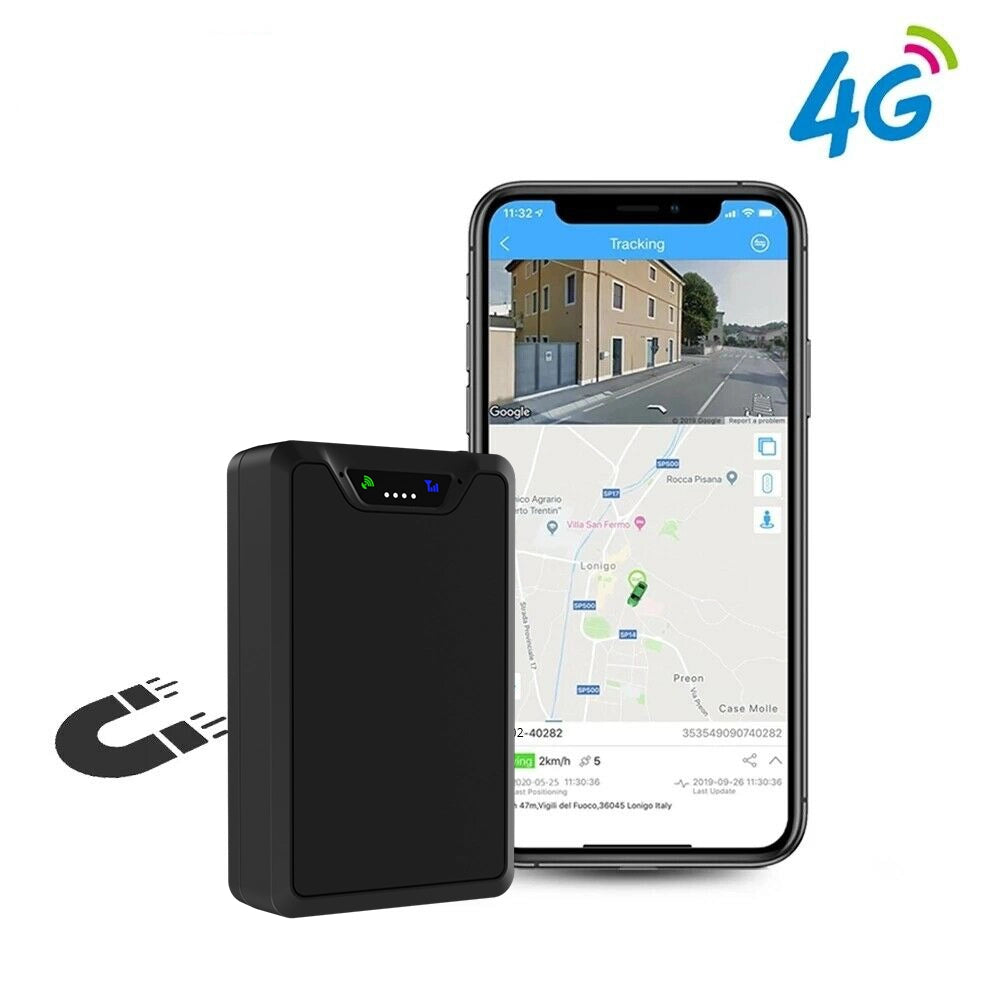

4G Portable GPS Asset & Vehicle Tracker
🛰️ Real-Time, Accurate Tracking
Stay in complete control with live GPS data that updates in real time. Track vehicles, machinery, or valuable assets with precision — powered by the reliable Telstra network or any other compatible 4G provider.
🧲 Strong Magnetic Mount
Featuring the strongest magnet in our product range, this tracker attaches securely to metal surfaces. For non-magnetic areas, simply use the included adhesive pad — no wiring or tools required.
🌧️ IPX5 Dust & Water Resistant
Built to perform in the toughest environments. Its rugged, weather-resistant design ensures dependable tracking on construction sites, farms, or industrial facilities — rain, dust, or shine.
📍 Precise Location Tracking
With GPS accuracy within a few metres, you’ll always know the exact location of your equipment, vehicle, or asset.
🚨 Instant Tamper Alerts
Receive immediate alerts via the mobile app if anyone attempts to tamper with or remove the tracker. Combined with the strong magnetic mount, your tracker — and your assets — stay secure.
⚡ Long Battery Life
Enjoy exceptional endurance:
-
Up to 3 years standby in Power-Saving Mode
-
Up to 10 days in continuous high-accuracy mode
This makes it perfect for long-term, low-maintenance asset protection.
🔩 Built for Harsh Environments
Made from impact-resistant polycarbonate, this tracker is designed to handle rough conditions in warehouses, vehicles, and outdoor sites.
📱 Control Everything from Your Phone
Manage your tracker effortlessly using the free lifetime Tracksolid Pro app:
-
Set geo-fences to receive alerts when your asset leaves an area
-
View real-time location and historical travel routes (up to 3 months)
-
Receive instant notifications for tampering, movement, or low battery
Includes lifetime access to the Tracksolid Pro platform — no subscription fees.
🛠️ Simple Self-Installation
No professional installation required. Just attach the tracker to your vehicle or asset using the magnet or adhesive pad, and it starts tracking automatically.
⚠️ Important Notes
-
A SIM card is required (not included).
-
Activate your SIM with a mobile plan that includes call, text, and at least 2–3 GB of data per month for optimal performance.
-
Due to the waterproof seal, a power screwdriver may be needed during initial setup.
-
Keep your order number and device IMEI handy when contacting technical support for Tracksolid Pro assistance.
🛰 GNSS (Positioning)
Positioning System: GPS + BDS + LBS
Positioning Accuracy: < 2.5 m (CEP)
Tracking Sensitivity: –165 dBm
Acquisition Sensitivity: –148 dBm
TTFF (Open Sky):
Hot start: ≤ 1 sec
Cold start: ≤ 32 sec
📡 Cellular
Communication Network: LTE Cat 1 / GSM
LL302-E
LTE-FDD: B1 / B3 / B5 / B7 / B8 / B20 / B28
LTE-TDD: B38 / B40 / B41
GSM: B2 / B3 / B5 / B8
LL302-L
LTE-FDD: B1 / B2 / B3 / B4 / B5 / B7 / B8 / B20 / B28
LTE-TDD: B40
GSM: B2 / B3 / B5 / B8
🔋 Power
Battery: 6,000 mAh / 3.7V industrial-grade Li-Polymer
Working Modes:
Mode 1: Regular GPS Mode
Mode 2: Tracking Mode
Mode 3: Power-Saving Mode
Standby Time: Up to 1 year in power-saving mode
💡 Interface
LED Indicators:
GNSS (Blue)
Cellular (Green)
Power (White)
SIM Type: Micro-SIM
Tamper Detection: Light sensor
⚙️ Physical Specifications
Dimensions: 95.0 × 59.0 × 29.2 mm (with magnet)
Weight: 233 g (with magnet)
Ingress Protection: IPX5 (weather resistant)
🌡 Operating Environment
Operating Temperature: –20°C to +70°C
Operating Humidity: 5%–95% (non-condensing)
🔍 Feature Set
Temperature Detection: –20°C to +70°C (±0.2°C)
Humidity Detection: 5%–95% RH (±1% RH)
Sensors:
3-axis accelerometer
Light sensor
Optional temperature & humidity sensor
Hall effect sensor
⚠️ Alerts & Scenarios
Low battery alert
Tamper alert
Vibration alert
1 x 4G Portable GPS Asset Tracker
1 x Magnetic Cover
1 x Charging Cable and Adaptor
1 x User Manual
