4G GPS Tracking Device
Precision. Reliability. Control.
Accurate GPS Data
Experience pinpoint accuracy within 2 metres. Whether you're tracking vehicles, equipment, or valuable assets, this 4G GPS tracker delivers real-time, precise updates via Australia’s reliable communication networks.
4G Connectivity
Enjoy fast, stable data transmission with 4G LTE technology. Receive continuous, real-time location updates through the GPS51 app, ensuring you stay informed 24/7.

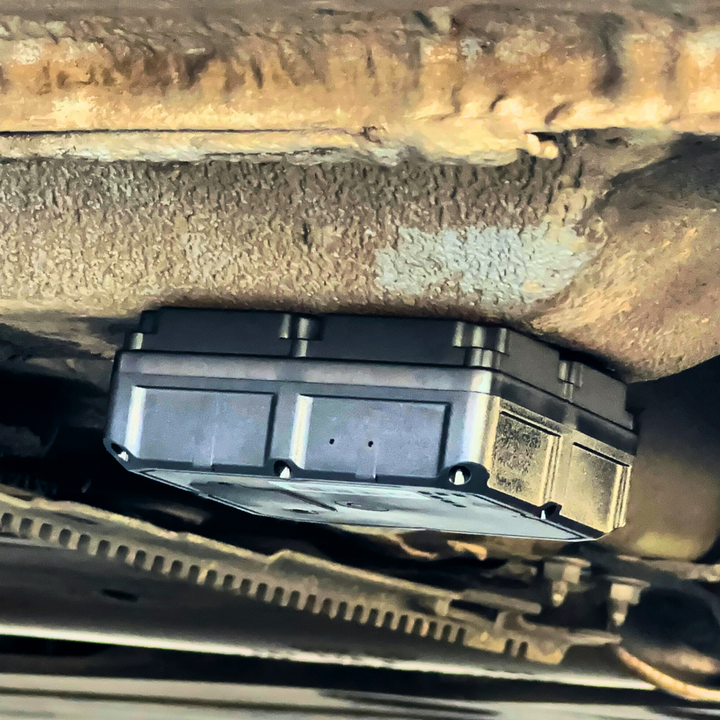

Magnetic Attachment
Install with ease. The strong magnetic base ensures the tracker stays securely attached to any vehicle or metal surface—no wiring required.
Voice Monitoring
Gain an extra layer of awareness with discreet voice monitoring, allowing you to remotely listen to the surrounding environment when needed.
Waterproof Protection
Built to last with an IP67 waterproof rating, the tracker withstands rain, dust, and harsh conditions for dependable performance outdoors.
Custom Alerts
Stay in control with smart notifications for:
All alerts are instantly sent via the GPS51 app for your convenience.
Power Efficiency
Maximise uptime with ultra-long battery life. Toggle between normal and power-saving modes to extend operational time without frequent recharging.
Advanced Tracking Systems
Powered by GPS, GLONASS, and BEIDOU, the device ensures the highest level of global positioning accuracy and coverage.
Security & Control
Enjoy lifetime access to the easy-to-use tracking platform, giving you complete command over your device’s data, alerts, and settings.
Physical Characteristics
Dimensions: 95mm × 72mm × 35mm
Weight: 70g
Waterproof & Dustproof Grade: IP67
Operating Temperature: -40°C to +85°C
Storage Temperature: -20°C to +75°C
Operating Humidity: 5% ~ 95%
Power & Battery
Backup Battery: 7500mAh / 3.7V Lithium Battery
Battery Life: Up to 2–3 months (depending on mode and usage)
Charging Voltage/Current: DC 5V / 2A
Power Consumption:
Online Sleep Mode: 800μA
Normal Mode (Timed Reporting): 24mA
Positioning Performance
Positioning Accuracy: < 2 metres
Supported Systems: GPS, GLONASS, GALILEO, BEIDOU, QZSS, SBAS, AGPS
Positioning Time:
Hot Start: < 1 second
Cold Start: < 28 seconds (with AGPS)
Tracking Sensitivity: -160dB
Acquisition Sensitivity: -148dBm
Number of Channels: 122 Tracking, 64 Acquisition
Maximum Frequency Error: ±0.1PPM
Communication & Connectivity
Network: 4G LTE Cat1
Frequency Bands:
B1 / B2 / B3 / B4 / B5 / B7 / B8 / B20 / B28 / B34 / B38 / B39 / B40 / B41 / B66
Data Transfer Speed:
Download (DL): Max 10Mbps
Upload (UL): Max 5Mbps
Communication Protocol: TCP
GPRS Class: Class 12, TCP/IP
Hardware Components
Positioning Chipset: HD8125
Communication Module: BC78
Antennas: GNSS, GSM (Built-in)
GSM Antenna Design: Internal

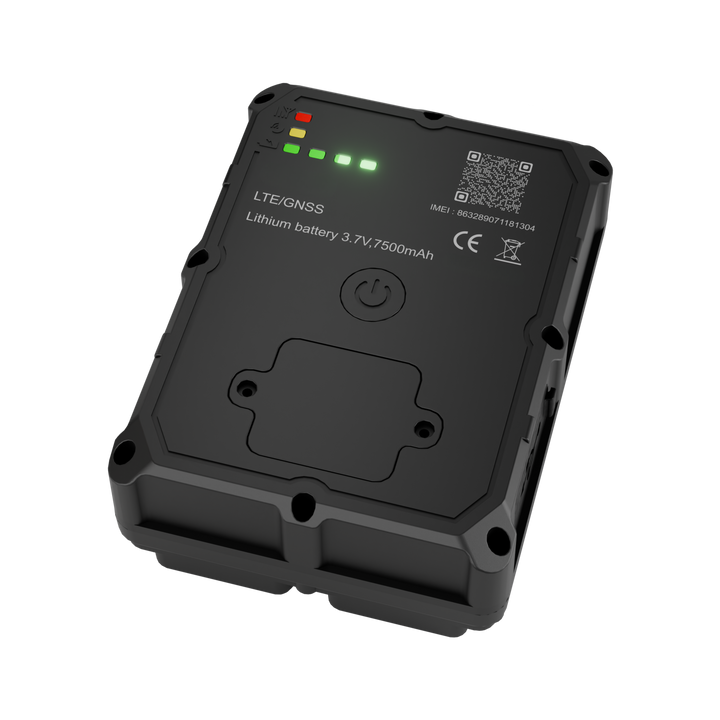

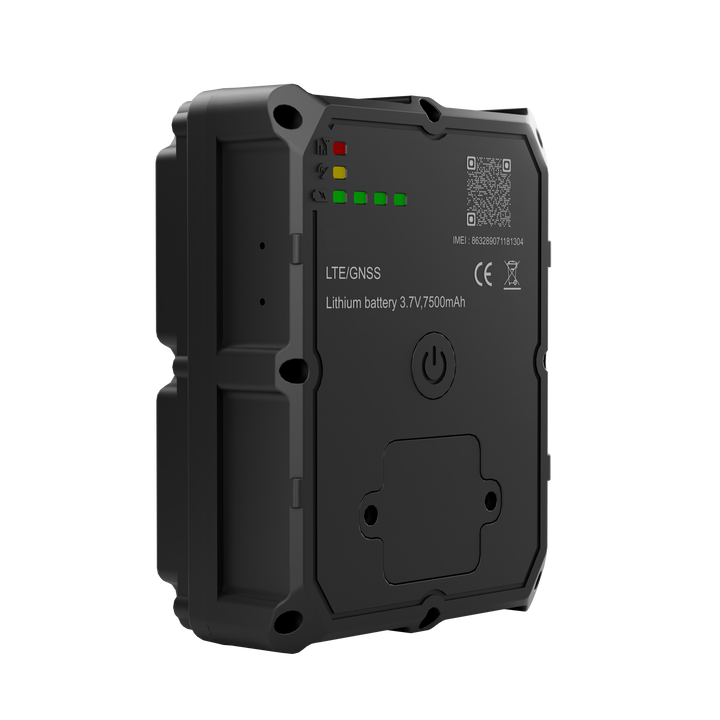

Indicators
LED Status Lights:
GPS: Blue
GSM: Red
Power: Green
1 x 4G Portable GPS Asset Tracker
1 x Magnetic Cover
1 x Charging Cable and Adaptor
1 x User Manual
