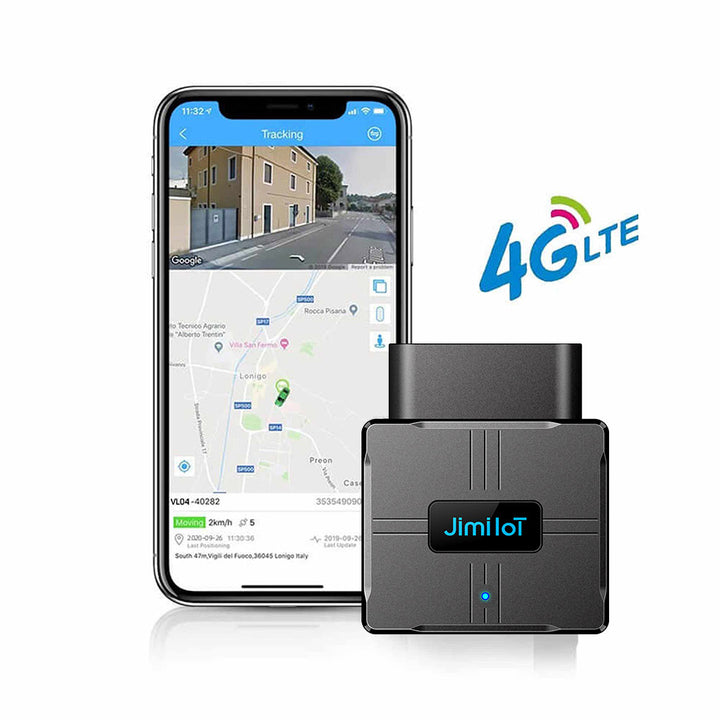

Real-Time Tracking
Always know where your vehicle is on the road with real-time GPS tracking.
View live location, speed, and direction instantly through our free mobile app or via SMS alerts. Just tap a notification to check your car’s precise position at any time.
Intelligent Alert System
Stay informed and drive safely.
The voice alert feature reminds drivers to maintain safe driving habits and avoid risky behavior, keeping everyone secure on the road.
Advanced Accelerometer & Gyroscope
Powered by an advanced motion-sensing algorithm, this tracker delivers highly accurate mileage calculations and minimizes GPS uncertainty — even in areas with weak satellite signals.
Know exactly who’s driving and how the vehicle is performing in real time.

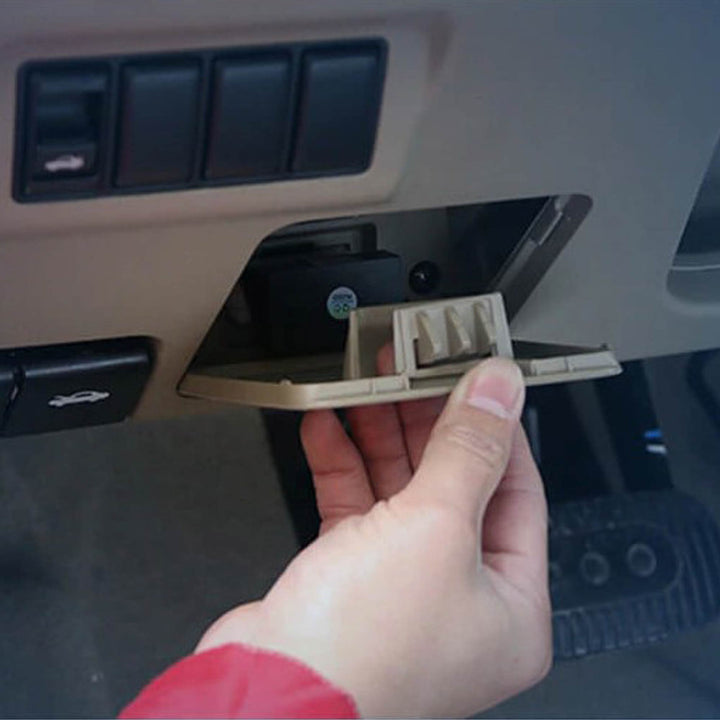

Plug-and-Play Installation
Installation couldn’t be easier — simply plug the tracker into your car’s OBD-II port and it’s ready to go within seconds.
No tools, no wiring, no hassle.
Free Lifetime Subscription
Your tracker comes pre-configured and ready to use with a free lifetime subscription to the Tracksolid Pro web platform and mobile app.
Compatible with PC, Apple, and Android devices, it gives you full access to tracking and alert features with no contracts or hidden fees.
Disclaimer
-
A SIM card is required (not included).
-
Please activate your SIM with a mobile plan that includes calls, texts, and at least 2–3 GB of data per month to ensure smooth GPS data transmission.
-
Purchases from The Spy Store include lifetime access to the Tracksolid Pro tracking software and technical support.
Have your order number and device IMEI ready when contacting support.
Mini 4G OBD GPS Multi-Alert Tracker – Technical Specifications
GNSS (Positioning System)
System: GPS / BDS
Positioning Accuracy: < 2.5 m CEP
Tracking Sensitivity: -162 dBm
Acquisition Sensitivity: Cold start: -148 dBm / Hot start: -156 dBm
Time to First Fix (TTFF, open sky):
Hot start: ≤1 sec
Cold start: ≤32 sec
Cellular
Communication Network: LTE + GSM
Frequency Bands:
VL502 (L): LTE-FDD: B2/B3/B4/B5/B7/B8/B28/B66; GSM: B2/B3/B5/B8
VL502 (E): LTE-FDD: B1/B3/B5/B7/B8/B20/B28; GSM: B2/B3/B5/B8
VL502 (A): Cat M1: B2/B4/B5/B12/B13; Cat NB2: B2/B4/B5/B12/B13
Power
Battery: 50 mAh / 3.7 V
Input Voltage: 9–36 VDC
Interface
LED Indicator: 1 status LED (Blue)
SIM Card: Nano-SIM
Data Storage: 8 MB + 16 MB
OBD Port
Connection: OBD-II
Data Access: K-Line, CAN Bus
Supported OBD Protocols:
ISO 9141-2 (5 baud init, 10.4 kbaud)
ISO 14230-4 KWP (5 baud init, 10.4 kbaud)
ISO 14230-4 KWP (fast init, 10.4 kbaud)
ISO 15765-4 CAN (11-bit ID, 250/500 kbaud)
ISO 15765-4 CAN (29-bit ID, 250/500 kbaud)
SAE J1939 CAN (29-bit ID, 250/500 kbaud)
Physical Specifications
Dimensions: 61 × 52 × 26 mm
Weight: 55 g
Operating Environment
Temperature: -20 °C to 70 °C
Humidity: 5%–95%, non-condensing
Features
Sensors: Accelerometer
Ignition Detection: External power voltage
Scenario Alerts:
Car Fault, Over-Speed, Ignition Detection, Collision, Geo-Fence Entry/Exit, Power On, Device Pull-Out, Engine Idling
Driving Behavior Analysis:
Harsh Acceleration, Harsh Braking, Harsh Cornering, Collision
1 x 4G Portable GPS Asset Tracker
1 x Magnetic Cover
1 x Charging Cable and Adaptor
1 x User Manual
